Universalus moto spidometras1

Specification:

• 100% Brand New

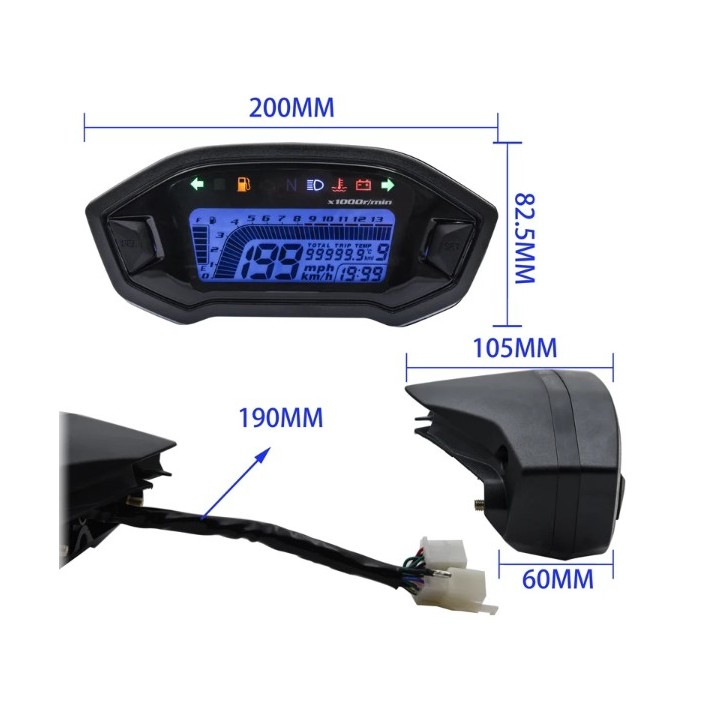

• Name:Motorcycle LCD Digital Speedometer

• Display: LCD Digital (default is red, short press the right button to change the color)

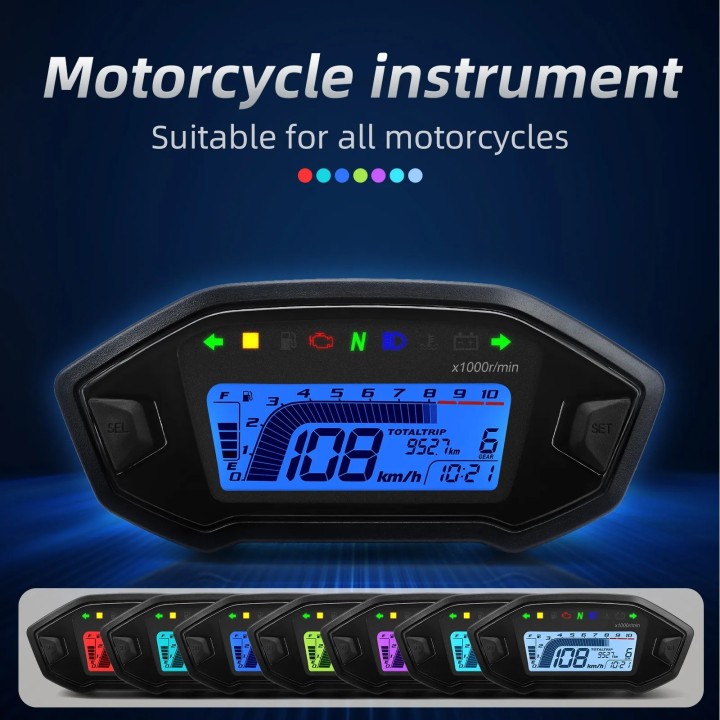

• Backlight Color: 7colors

• Power voltage: DC 12V

• Power: 35W

• Frequency: 21.8HZ

• Gear:1/2/3/4/5 gear

• Operating temperature:-30 ℃ ~ 80 ℃

• Storage temperature:-35 ℃ ~ 85 ℃

• Rpm parameter: 3000r/min

• Speed: 199KMH

• CD display speed: max 199 miles/kilometers

• Rpm:max display 12000

• Odo:max display 99999.9 in miles and kilometers

• Trip:max display 999.9 in miles and kilometers

• LCD display fuel segments

• Trip clears

• LED display left and right blinker

• LED display high beam

• LED display N

• Oil volume Display: 6 grids. Flashing LED indicates it's empty.

• Wire function and connection: speed senor connect directly to the 3-hole connector from the wire

• Material: ABS Housing + LCD Digital Display

Features:

• ALL-IN-ONE Function: Speedometer, Odometer, Tachometer, Fuel Level Display, Left and Right Indicator, N Gear, Battery, Water Temperature Indicator.

• LCD display: 1) Speed, Odometer, Trip, Meter, Gear position 2) Fuel level and Real-time 3) High Temperature Resistant and Fireproof ABS Material 4) Safe and Environmental. 5)Come with wires instruction.

• Ecellent performance on waterproof

• Shockproof, confirm the stability of electronic component

• Programmable, no matter that wheel size and engine type. You can program the speedometer yourself to make it works on your motocycle.

• Fitment: Fit for all universal motorcycles with DC 12V

• (The Compatibility Is Just For Reference. Please Compare With Your Original One Before Purchasing!)

Installation instructions:

1) The connection with 3 holes is need to connect to the sensor, the 6 holes and 9 holes are need to connect to wiring harness of your bike.

2) And connect the joint of sensor to fix in the shock absorber of your bike, and the magnet fix to the front wheel spokes which alignment on the position of the joint of sensor

Note:

• We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.


• No instructions included in this kit.

• Please allow 1-10mm difference due to manual measurement.

• Due to light and screen difference, the item's color may be slightly different from the pictures.

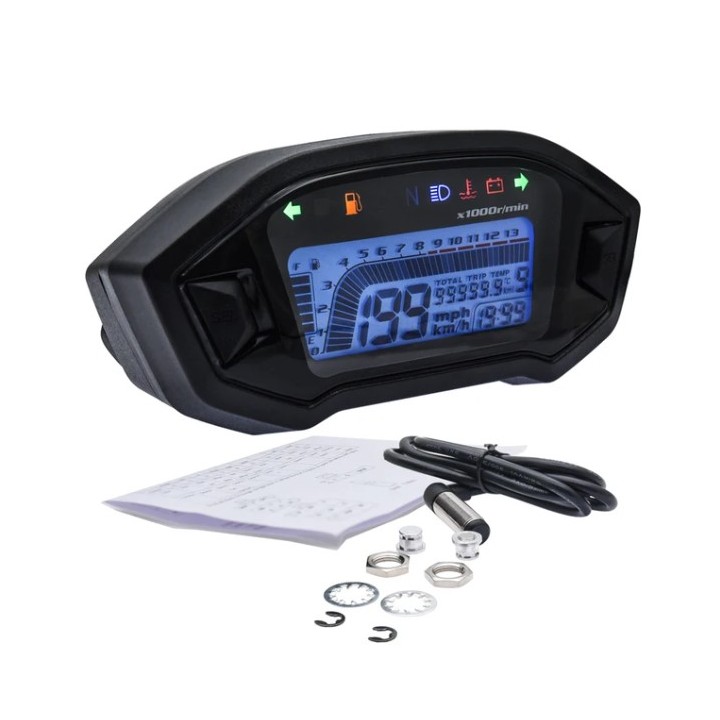

Package Includes:

• 1 X Motorcycle LCD Digital Speedometer

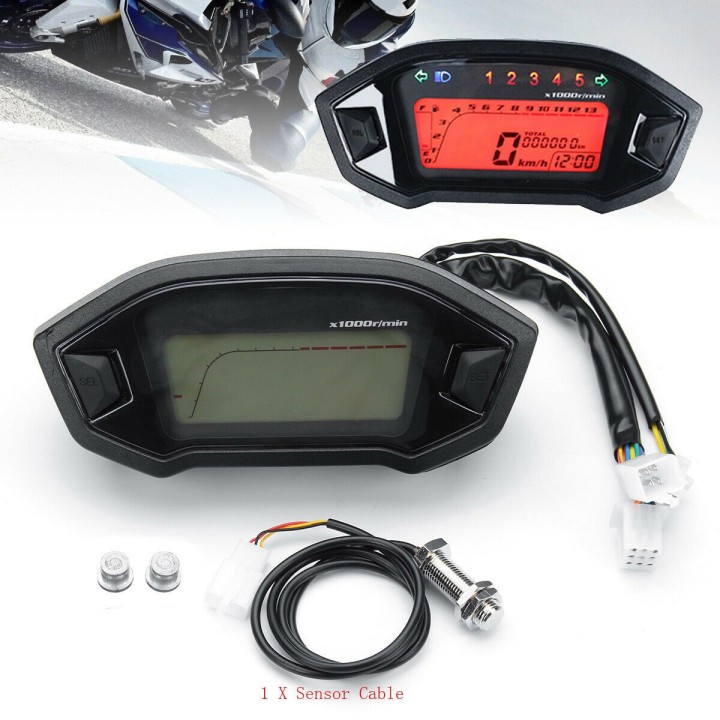

• 1 X Sensor Cable

• 2 X Magnetic Steel
